產品介紹：
TitaniumMaxibolt®盲螺栓具有擴展的性能，適用于金屬和復合盲孔緊固應用。 它們提供齊平，無毛刺的安裝，無需剃須。 Titanium Maxibolt通過采用獨特的換擋墊圈設計的單作用工具，提供快速一致的安裝。 全鈦套筒和閥桿與異國情調的復合材料兼容。 它們在安裝過程中不會對結構的出口側產生分層，并提供高達7°的盲側斜率公差。

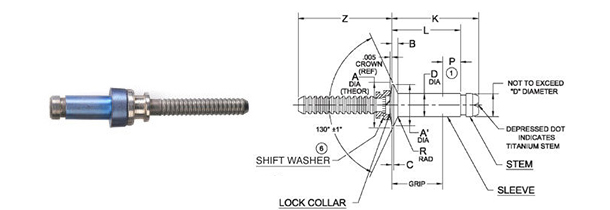

尺寸規格：
| 直徑編號 | D | A | A' | B | P | R | Z | 孔的限制 | 安裝強度（磅）➃ | |
| 單剪最小➄ | 抗拉最小 | |||||||||
| -05 | .163 | .333 | .296 | .039 | .215 | .025 | .844 | .164/.167 | 198 | 9 |
| -06 | .198 | .386 | .342 | .043 | .250 | .025 | .875 | .164/.167 | 2925 | 14 |
| -08 | .259 | .570 | .463 | .057 | .350 | .030 | 1.000 | .260/.263 | 55 | 21 |
| 直徑編號 | 控制界限 | -5 直徑 | -6 直徑 | -8 直徑 | ||||||
| 重疊最小 | 1 / 16的范圍內 | 重疊最大 | ||||||||
| 最小 | 最大 | L | K | L | K | L | K | |||
| –02 | / | .094 | .157 | .173 | .336 | .476 | .355 | .521 | / | / |
| –03 | .146 | .156 | .22 | .236 | .398 | .539 | .417 | .584 | .479 | .645 |
| –04 | .290 | .219 | .282 | .298 | .460 | .620 | .480 | .647 | .541 | .708 |
| –05 | .271 | .281 | .345 | .361 | .523 | .664 | .542 | .790 | .640 | .770 |
| –06 | .334 | .344 | .407 | .423 | .585 | .727 | .650 | .772 | .666 | .833 |
| –07 | .396 | .406 | .470 | .486 | .648 | .789 | .667 | .834 | .729 | .895 |
| –08 | .459 | .469 | .532 | .548 | .710 | .852 | .730 | .897 | .791 | .958 |
| –09 | .521 | .531 | .595 | .611 | .773 | .914 | .792 | .959 | .854 | 1.200 |
| –10 | .584 | .594 | .657 | .673 | .835 | .977 | .855 | 1.022 | .916 | 1.830 |
| –11 | .646 | .656 | .720 | .736 | .898 | 1.039 | .917 | 1.084 | .979 | 1.145 |
| –12 | .709 | .719 | .782 | .798 | .960 | 1.012 | .980 | 1.147 | 1.041 | 1.280 |
