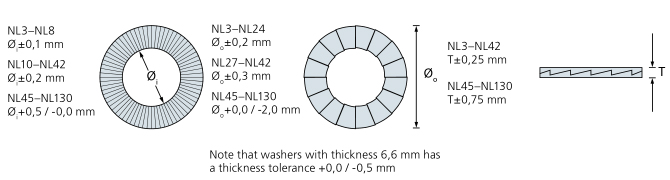

| 墊圈大小 | 螺栓尺寸 | øi(mm) | ø0(mm) | 厚度 T(mm) | 最少包裝(對) | 參考重量kg/100對 | |
| 度量 | UNC | ||||||
| NL3SS | M3 | #5 | 3.4 | 7.0 | 2.2 | 200 | 0,04 |
| NL3.5SS | M3.5 | #6 | 3.9 | 7.6 | 2.2 | 200 | 0.04 |
| NL3.5spSS | M3.5 | #6 | 3.9 | 9.0 | 2.2 | 200 | 0,07 |
| NL4SS | M4 | #8 | 4.4 | 7.6 | 2.2 | 200 | 0.04 |
| NL4spSS | M4 | #8 | 4.4 | 9.0 | 2.2 | 200 | 0,07 |
| NL5SS | M5 | #10 | 5.4 | 9.0 | 2.2 | 200 | 0,06 |
| NL5spSS | M5 | #10 | 5.4 | 10.8 | 2.2 | 200 | 0,11 |
| NL6SS | M6 | 6.5 | 10.8 | 2.2 | 200 | 0,09 | |
| NL6spSS | M6 | 6.5 | 13.5 | 2.0 | 200 | 0,16 | |
| NL1/4"SS | 1/4” | 7.2 | 11.5 | 2.2 | 200 | 0,09 | |
| NL1/4"spSS | 1/4” | 7.2 | 13.5 | 2.2 | 200 | 0,15 | |
| NL8SS | M8 | 5/16” | 8.7 | 13.5 | 2.0 | 200 | 0,12 |
| NL8spSS | M8 | 5/16” | 8.7 | 16.6 | 2.0 | 200 | 0,22 |
| NL3/8"SS | 3/8” | 10.3 | 16.6 | 2.0 | 200 | 0,19 | |
| NL3/8"spSS | 3/8” | 10.3 | 21.0 | 2.0 | 200 | 0,38 | |
| NL10SS | M10 | 10.7 | 16.6 | 2.0 | 200 | 0,18 | |
| NL10spSS | M10 | 10.7 | 21.0 | 2.0 | 200 | 0,37 | |
| NL11SS | M11 | 7/16” | 11.4 | 18.5 | 2.2 | 200 | 0,26 |
| NL12SS | M12 | 13 | 19.5 | 2.0 | 200 | 0,23 | |
| NL12spSS | M12 | 13 | 25.4 | 3.0 | 100 | 0,82 | |
| NL1/2"SS | 1/2” | 13.5 | 19.5 | 2.0 | 200 | 0,24 | |
| NL1/2sp"SS | 1/2” | 13.5 | 25.4 | 3.2 | 100 | 0,80 | |
| NL14SS | M14 | 9/16” | 15.2 | 23.0 | 3.0 | 100 | 0,49 |
| NL14spSS | M14 | 9/16” | 15.2 | 30.7 | 3,2 | 100 | 1,31 |
| NL16SS | M16 | 5/8” | 17 | 25.4 | 3,0 | 100 | 0,59 |
| NL15spSS | M16 | 5/8” | 17 | 30.7 | 3,2 | 100 | 1,13 |
| NL18SS | M18 | 19.5 | 29.0 | 3,2 | 100 | 0.85 | |
| NL18spSS | M18 | 19.5 | 34.5 | 3,2 | 100 | 0,80 | |
| NL3/4"SS | 3/4” | 20 | 30.7 | 3,2 | 100 | 1,56 | |
| NL3/4"spSS | 3/4” | 20 | 39.0 | 3,2 | 100 | 0,96 | |
| NL20SS | M20 | 21.4 | 30.7 | 3.4 | 100 | 2,10 | |
| NL2OspSS | M20 | 21.4 | 39.0 | 3,2 | 100 | 0,82 | |
| NL22SS | M22 | 7/8” | 23.4 | 34.5 | 3,2 | 100 | 2,06 |
| NL22spSS | M22 | 7/8” | 23.4 | 42.0 | 3,2 | 50 | 2,23 |
| NL24SS | M24 | 25.3 | 39.0 | 3,2 | 100 | 1,52 | |
| NL24spSS | M24 | 25.3 | 48.5 | 3,2 | 50 | 3,50 | |
| NL1"SS | 1” | 27.9 | 39.0 | 3,2 | 100 | 1,42 | |
| NL1"spSS | 1” | 27.9 | 48.5 | 3,2 | 50 | 3,22 | |
| NL27SS | M27 | 28.4 | 42.0 | 6,8 | 50 | 3,45 | |
| NL27spSS | M27 | 28.4 | 48.5 | 6,8 | 25 | 5,85 | |
| NL30SS | M30 | 1 1/8” | 31.4 | 47.0 | 6,8 | 50 | 4,43 |
| NL30spSS | M30 | 1 1/8” | 31.4 | 58.5 | 6,8 | 25 | 9,53 |
| NL33SS | M33 | 1 1/4” | 34.4 | 48.5 | 6,8 | 25 | 4,25 |
| ML33spSS | M33 | 1 1/4” | 34.4 | 58.5 | 6,8 | 25 | 5,96 |
| NL36SS | M36 | 1 3/8” | 37.4 | 55.0 | 6,8 | 25 | 6,74 |
| NL36spSS | M36 | 1 3/8” | 37.4 | 63.0 | 6,8 | 25 | 7,96 |
| NL39SS | M39 | 1 1/2” | 40.4 | 58.5 | 6,8 | 25 | 10,20 |
| NL42SS | M42 | 43.2 | 63.0 | 6,8 | 25 | 12,00 | |
| NL45SS | M45 | 1 3/4” | 46.2 | 70.0 | 6,8 | 25 | 20,10 |
| NL48SS | M48 | 49.6 | 75.0 | 6,8 | 25 | 21,30 | |
| NL52SS | M52 | 2” | 53.6 | 80.0 | 9,0 | 25 | 23,50 |
| NL56SS | M56 | 2 1/4” | 59.1 | 85.0 | 9,0 | 10 | 25,80 |
| NL60SS | M60 | 63.1 | 90.0 | 9,0 | 10 | 28,20 | |
| NL64SS | M64 | 2 1/2” | 67.1 | 95.0 | 9,0 | 10 | 30,70 |
| NL68SS | M68 | 71.1 | 100 | 9,0 | 1 | 33,30 | |
| NL72SS | M72 | 75.1 | 105 | 9,0 | 1 | 36,00 | |
| NL76SS | M76 | 3” | 79.1 | 110 | 9,0 | 1 | 33.30 |
| NL80SS | M80 | 83.1 | 115 | 9,0 | 1 | 36.00 | |
