產品介紹：
CherrySST®盲鉚釘系統旨在解決許多與需要優質片材卷取的飛機組件相關的盲緊固問題。 SST盲鉚釘系統的安裝確保了固定的間隙或略微不對齊的孔的困難組件的一致和長時間的緊固。 SST盲鉚釘系統可以安裝標準的CherryMAX®工具，無需調整。 消除您堅固的組件中的工作間隙...使用SST Blind緊固系統實現卓越的卷取。

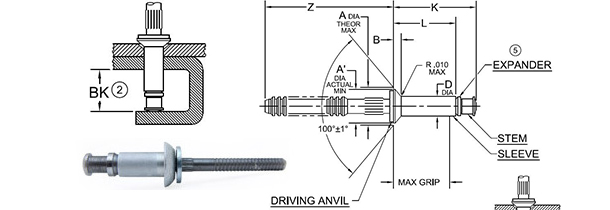

尺寸參數：
| 編號 | A | A' | B | D | Z | BK | 推薦孔的限制 |
| -4 | .229 | .207 | .044 | .127 | .355 | .355 | .129/.132 |
| -5 | .290 | .268 | .057 | .158 | .370 | .370 | .160/.164 |
| -6 | .357 | .335 | .072 | .190 | .415 | .415 | .192/.196 |
| 編號 | GRIP限制為 1/16范圍 |
‐4 直徑 | ‐5 直徑 | ‐6 直徑 | ‐8 直徑 | |||||
| 最小 | 最大 | L | K | L | K | L | K | L | K | |
| -2 | ⑥ | .125 | .213 | .42 | .220 | .44 | .287 | .526 | .235 | .46 |
| -3 | .126 | .187 | .275 | .54 | .282 | .56 | .350 | .651 | .297 | .58 |
| -4 | .188 | .250 | .338 | .58 | .345 | .60 | .412 | .776 | .360 | .64 |
| -5 | .251 | .312 | .400 | .64 | .407 | .66 | .475 | .901 | .422 | .70 |
| -6 | .313 | .375 | .463 | .71 | .470 | .73 | .537 | 1.026 | .485 | .77 |
| -7 | .376 | .437 | .525 | .77 | .532 | .79 | .600 | 1.151 | .547 | .83 |
| -8 | .438 | .500 | .588 | .83 | .595 | .85 | .662 | 1.276 | .610 | .89 |
| -9 | .501 | .562 | .650 | .89 | .657 | .91 | .725 | 1.401 | .672 | .95 |
| -10 | .563 | .625 | / | / | / | / | .787 | 1.526 | .735 | 1.02 |
